detailed information

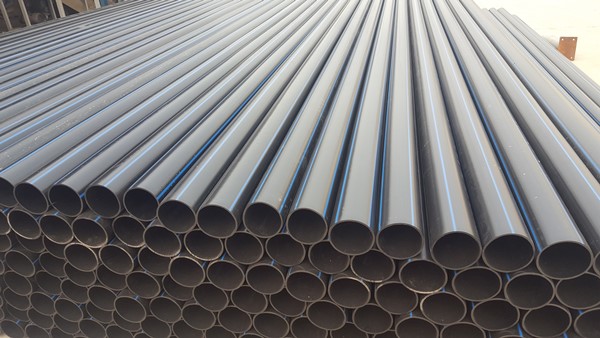

PE管是一款采用聚乙烯树脂为原材料，添加必要的辅助配料，经挤出加工而成的一种产品。

PE pipe is a product made of polyester resin and necessary auxiliary materials through extrusion processing.

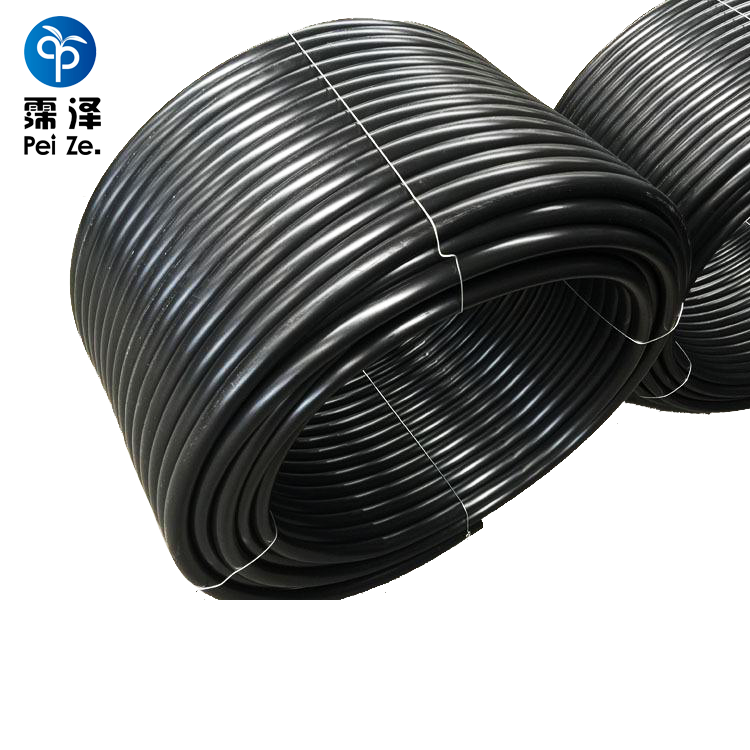

产品型号：常用的PE管型号主要包括Φ16、Φ20、Φ25、Φ32、Φ40、Φ50、Φ63、Φ75、Φ90、Φ110等（一般管径较小的PE管为盘管）。根据管径及壁厚不同（壁厚1.0mm-7.0mm），其承压范围从0.32MPa-1.6MPa不等。产品特点：（PE管常用型号Φ16*1.0；Φ16*1.2；Φ20*1.5；Φ25*1.8；Φ32*2.0；Φ40*2.3；Φ50*3.0；Φ63*3.0；Φ63*3.5）

Model: Commonly used PE pipe models mainly include Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110 and so on (usually PE pipe with a small pipe diameter is coil). According to the pipe diameter and the wall thickness (1.0mm-7.0mm), its pressure bearing scope ranges from 0.32MPa-1.6MPa. Product features: (commonly used PE pipe models Φ16*1.0; Φ16*1.2; Φ20*1.5; Φ25*1.8; Φ32*2.0; Φ40*2.3; Φ50*3.0; Φ63*3.0; Φ63*3.5)

①产品连接方便、施工简单，各种型号的锁紧管件齐全。PE管在安装完成后即可试水，使用方便；

②PE管具有良好的刚性、强度，也有很好的柔性；韧性、挠性好，断裂伸长率高，在不均匀沉降地区使用时效果极佳。

③耐腐蚀、无需防腐处理，耐磨性能强，PE管正常使用寿命可达50年以上。

④产品内壁光滑，流通能力大，水流阻力小，输水能力强，且产品成本低，性价比高。

⑤低温抗冲击性好，聚乙烯的低温脆化温度极低，可在-20~40℃温度范围内安全使用。材料抗冲击性好，便于冬季安全使用，不会发生管子脆裂。

① The product can be connected conveniently. Construction is simple. We provide a complete series of locking pipe fittings. After installation of PE pipe, water testing can be carried out. It is convenient to use.

②PE pipe is of good rigidity, strength, tenacity and flexibility as well as elongation at break. It can achieve superb effects in areas with uneven sedimentation.

③ The product is anti-corrosion and high abrasive resistance, separate anti-corrosion treatment is not needed. Thus the normal service life of PE pipe can be up to over 50 years.

④ The inner wall of the product is smooth, the flow capacity is large, the water flow resistance is small, the water delivery capacity is strong, the product cost is low, and the cost performance is high.

⑤ The product has good impact resistance performance at a low temperature. The low-temperature brittle point temperature of PE is extremely low. It can be used safely within -20~40℃. With good impact resistance performance, the product can be used safely in winter without brittle rupture of pipes.

产品应用范围：PE管目前广泛的应用于农业灌溉、城镇给排水、园林绿化管网等。

Application range of the product: PE pipe has been widely applied in agricultural irrigation, urban water supply and drainage, gardening pipeline, etc.
